#101840 Polaris Current Sportsman and Scrambler Winch Mount

$55.95

5.0 average, based on 1 reviews

Product Code: 101840

Manufacturer: KFI Products

Brand New "KFI" Winch Mount for the Following Polaris ATV's:

Polaris ATV'sYear
Scrambler 850 (XP)'13-24
Scrambler 1000 (XP)'14-18
Sportsman ETX (Hawkeye)2015
Sportsman 400'11-14
Sportsman 450'16-24
Sportsman 450 Utility Edition (!!! SEE NOTE X Below)'21-24
Sportsman 500'11-13
Sportsman 500 Touring'11-13
Sportsman 550 (XP)'09-14
Sportsman 550 Touring'10-14
Sportsman 550 X2'10-14
Sportsman 570 (Base/SP/EFI)'14-24
Sportsman 570 EPS (Base/Utility)'14-20
Sportsman 570 EPS (!!! SEE NOTE X Below)'21-24
Sportsman 570 Premium2020
Sportsman 570 Premium (!!! SEE NOTE X Below)'21-24
Sportsman 570 Utility HD LE (!!! SEE NOTE X Below)'21-24
Sportsman 570 Touring'14-24
Sportsman 570 X2'15-22
Sportsman 800'11-14
Sportsman 850 (XP, Highlifter)'09-24
Sportsman 850 Touring'10-24
Sportsman 850 X22011
Sportsman XP 1000'15-24
Sportsman XP 1000 Touring'15-24
Sportsman 6x6 Big Boss'11-24

Supersedes Winch Mount #101740 and 100740

NOTE X: Bumper Conversion Bracket #101895 will need to be purchased in order to reinstall OEM Polaris Front Bumper (See Below)

  • Even if the machine does not come factory with the front bumper but you plan on adding the bumper to your current year Polaris Sportsman, the conversion bracket will be required (See Below)

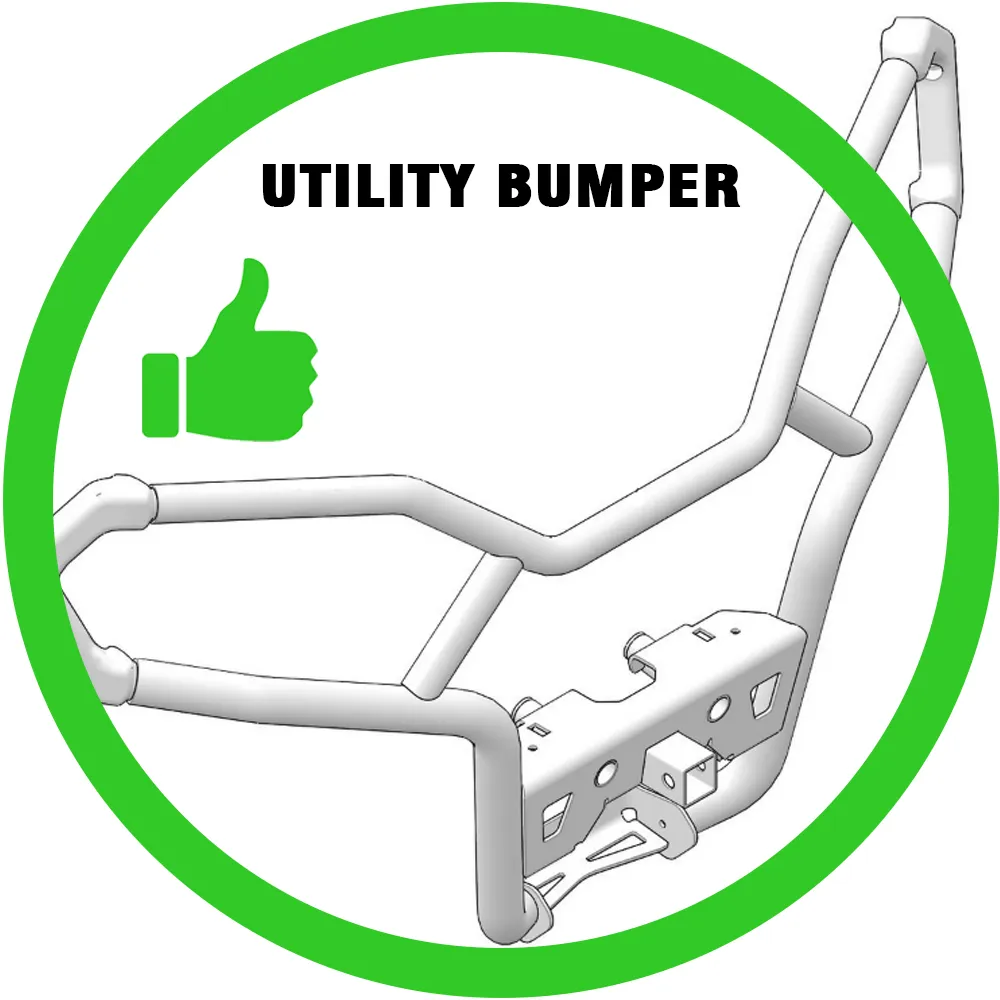

Polaris OEM Bumper Part Numbers
Utility Front BumperTrail Front Bumper
2638234-4582638410-458
2639244-4581026154-458
 1028482-458

Mount designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50x (requires purchase of ATV-MR)
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR) (Will NOT work with Terra25 / Terra35 / Terra45)
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • MASTER LOCK: 1500lbs #2955AT
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • CYCLE COUNTRY: Work Power 1500 and 2500
  • BADLAND: 2-Hole Winches (Click Here for Details)
  • BADLAND: Standard Winches (Click Here for Details)
  • VENOM:  2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
  • CHAMPION: 2-Hole Winches (Click Here for Details)
  • CHAMPION: ATV 4-hole Winches (Click Here for Details)
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT: XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern.
  • Traveller: 1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 10 GA GR50 steel
  • Designed to fit between in the OEM location below the radiator
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Mounts the same as OEM intended.
  • Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
  • Very easy to install.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Will work with Polaris Glacier Plow.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.



Why buy the OEM Kit when you can  SAVE $100-$150 by getting your winch separate and buying our High Quality 100% American made winch mount.  Your Sportsman is pre-wired with the battery wires pre-ran from your battery to the contactor mount located under your front RH wheel well.  We have everything you need in our kit to mount your winch and fairlead.



Customer Reviews

Perfect fit

Have a 2015 850 Sportsman SP and always worry because accessories never mention the SP. This mount fit perfectly. The instructions were good and the kit contained all the parts I needed. Winch was a Badlands ZXR 3500 and fit fine.

Robert :: 22 Jan 2021, 10:41
