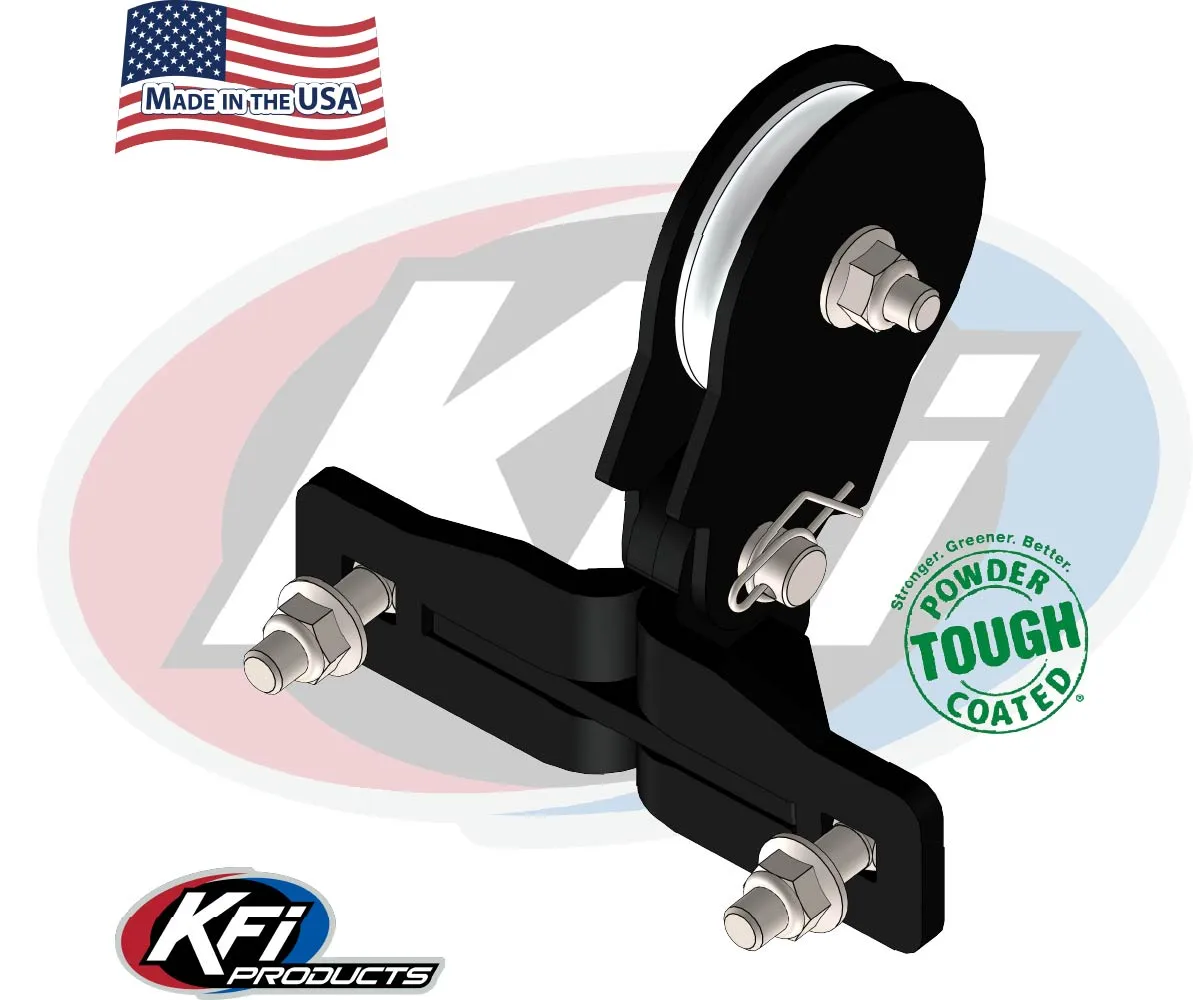

KFI Quick Plow Pulley for Synthetic Cable
NOTE: FOR SYNTHETIC CABLE USE ONLY
Direct replacement for #106270
The KFI Quick Plow Pulley is a purpose-built, easy on / easy off cable-attachment pulley designed specifically to work with the KFI UTV Plow System. It improves lift geometry when raising the blade, helps manage cable angles during plowing, and can also slow the raising speed for smoother, more controlled operation.
Key Features & Benefits
- Designed for KFI Plow Systems – Engineered specifically for KFI UTV and ATV plow applications
- Improves Plow Lift Geometry – Helps correct poor cable angles when raising the blade
- Controlled Lift Speed – Can reduce lift speed for smoother blade movement
- Seasonal Fairlead Replacement – Replaces the standard winch fairlead during plow season
- Multi-Position Wheel Mounting – Allows fine-tuning for different applications and cable angles
Multi-Purpose Mounting
- Fairlead-mounted or push-tube-mounted
- Works with:
- UTV Push Tubes: #106300 / #106310 / #105635
- ATV Push Tubes: #105000 (should not be needed)
Winch Compatibility
- For standard-size winches with a 4.875" bolt-up pattern
- For wide winches with a 6.60" bolt-up pattern, use part #106465
Synthetic Cable Protection
- Large 2-1/8" diameter aluminum wheel for smoother cable movement compared to standard 7/8" rollers
- Curved cable groove helps prevent cable flattening that can lead to premature cable failure
- Eliminates cable kinking caused by small roller contact and abrupt angle changes
- Stationary aluminum wheel prevents pinching of synthetic cable
Recommended Accessory
- 12" Soft Strap #106470 recommended to attach the winch hook back to the machine
